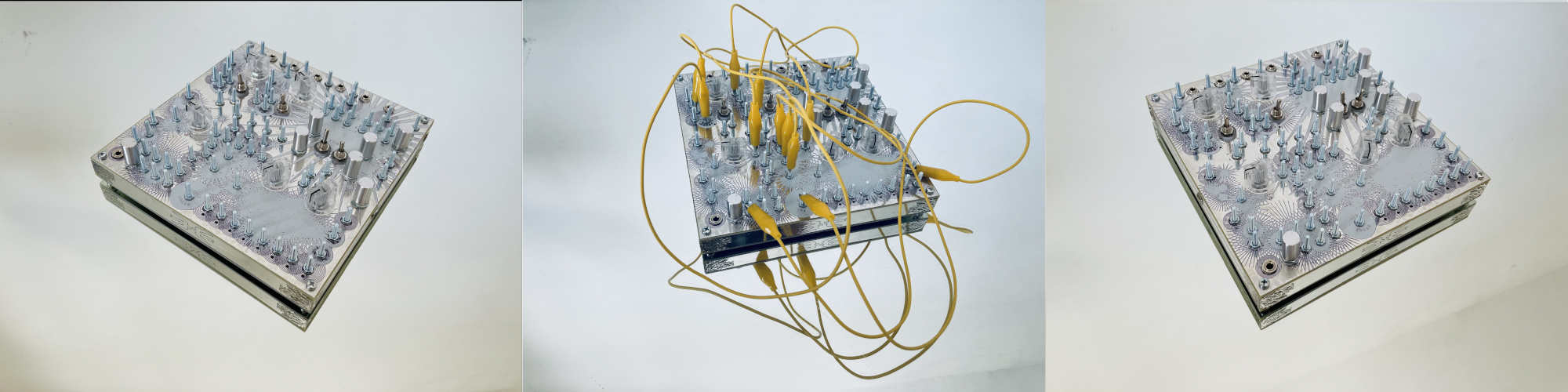

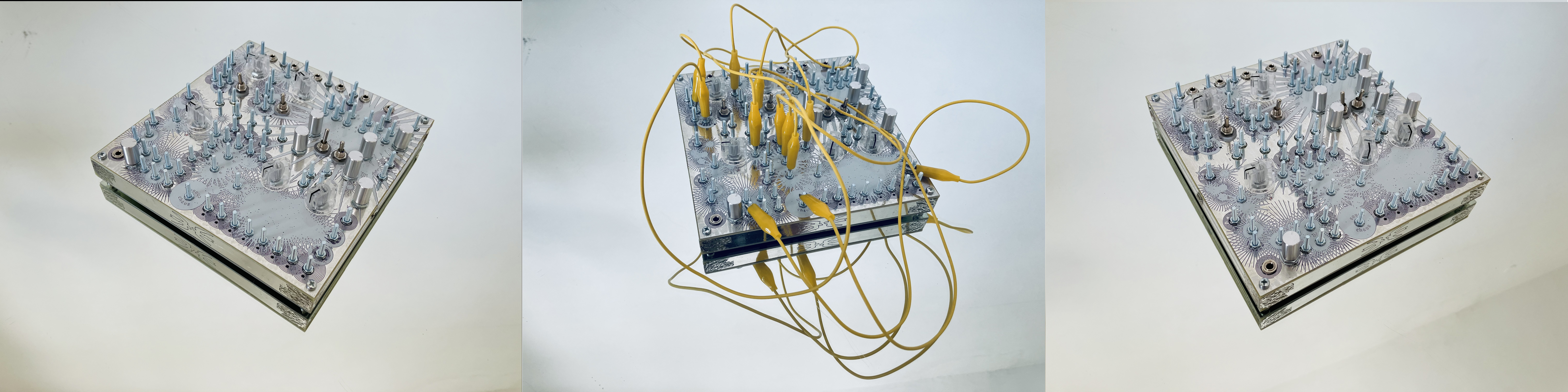

Anti Rave Slopes Frosty Edition

New Anti Rave colourway in white with silver and transparent knobs.

There are also functional differences -

- LO FI mixer

- 4x1 multiplexer with pseudo random sequencing controlled by the chaos gen

- Headphones output - can be used to drive headphones, an 8 ohm speaker, or even a spring reverb tank

- Dedicated line out, there are still 5 assignable 3,5mm outputs but now there is also a dedicated line level output from the mixer module

- Trigger input on the resonator - nice for percussion

- Voltage control of the resonator frequency

- all logic gate inputs can now be triggered by very low voltage for maximum compatibility with other gear and also electroacoustic systems

- waveshaper has 1 stage instead of 2















-2 VCO's (pulse and triangle outputs + 4 circuit bending touch sensitive patch points)

-The circuit bent patch points allow a range of WTF type of non linear and unpredictable modulation, depending on how and where you patch them

-2 slope generators with voltage control on attack and release, end of cycle pulse output, and trigger, hold, and loop inputs

-2 waveshapers with 2 voltage control inputs each, for overdriving and mangling internal or external signals

-2 gates - 1 high pass with diode clipping, 1 low pass - very clean

-8 stage clock divider which also activates the capacitor switching of the filter

-Unique capacitor switching low pass filter capable of a wide range of sounds - percussive pinging, metallic sounds, additive and comb synthesis, lush and mellow to harsh and abrasive mayhem

-3 XOR gates which can generate logic outputs from pulse inputs or can be used to ring modulate pulse waves

-pseudo random chaos generator inspired by the famous rungler module by Rob Hordijk, has clock and data inputs and chaos output, great as a sound source or for modulations

-voltage controllable white noise with 3 different output responses, and manual as well as voltage control on the texture/density

-5 assignable 3,5mm mono jacks for routing signals in and out of the module, allowing for full flexibility in how the user adapts the module to their needs

-78 patch points

-physical dimensions are 17cm x 17.7cm x 1.8cm (without knobs) approximately 500 grams

-accepts and puts out positive voltage in the range of 0-10V

-runs on standard 12v center positive 2,1x5,5mm tip

-comes with usb to 12v power supply allowing for usage with usb battery pack or any standard usb (not c) phone/wall charger

-comes with 10 crocodile clips so you can immediately get started.

-all parts and production processes lead free and rohs compliant

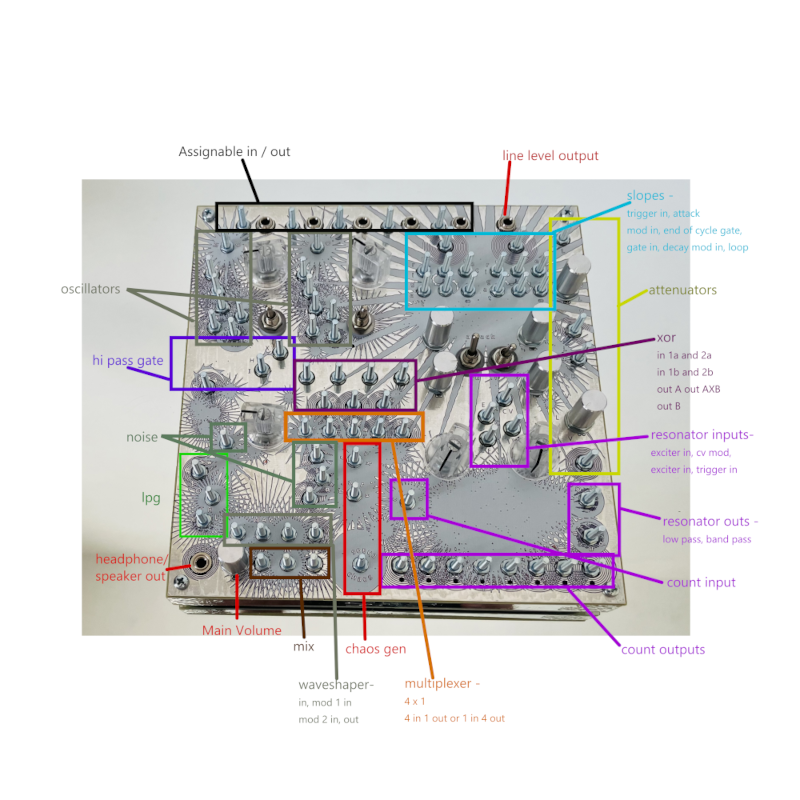

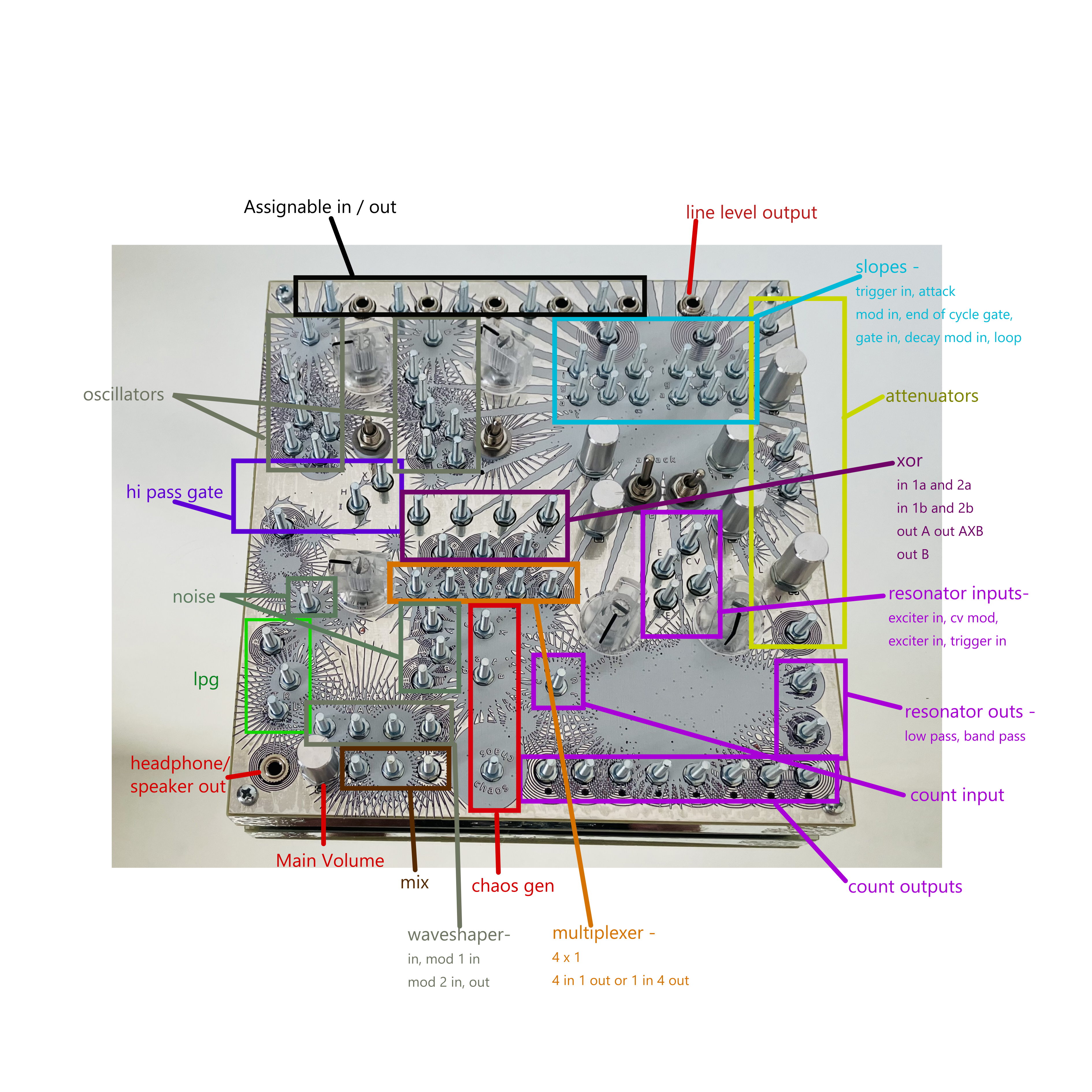

ANTI RAVE // SLOPES EDITION USER MANUAL
